ACU-DF10.9 ™

Direct Fit tensioners for wind, cranes, hydro, and many others.

ACUTENSION is proud to introduce ACU-DF™ the Direct Fit tensioner range guaranteed to offer ISO 898-1 Gr. 10.9 proof loads within the smallest possible footprint.

Recognising the gap between larger-footprint standard tensioners and costlier multi-stage tooling, our engineers set-out to design a range of tensioners guaranteed to fit where standard puller type tensioners cannot; at a lower procurement cost than multi-stage tooling. Making use of internally threaded pistons and higher pressure hydraulics (<250 MPa), they succeeded.

ACU-DF™ offers 95% yield loading for Grade 10.9 bolts commonly specified in several industrial applications; such as:

  • Wind turbines
  • Cranes and slewing rings
  • Hydro turbines
  • Flanges and heat exchangers
  • Marine/offshore
DATASHEET DOWNLOAD
Acu-DF - Acutension

Many gasketed and mechanical joints in the field demand a tighter-fitting tool; or may preclude the application of hydraulic tension altogether. Wherever this is the question, ACU-DF™ is the answer.

Tight bolt PCDs and overhead clearances – often the enemy of hydraulic tensioners – are no problem for the low profile design of ACU-DF™ which assures safe, easy use. As such, ACU-DF™ is the most ergonomic tensioner currently on the market, featuring many interface enhancements to make even the heaviest bolting challenges an effortless task.

ACU-DF™ tensioners benefit from the following features:

  • 227.5 MPa operating pressure (uprateable to 250 MPa)
  • 95% bolt yield load in accordance with ISO 898-1 Gr.
    10.9
  • Direct-fit, threaded piston design to reduce footprint
    for enhanced radial clearance
  • Split body/bridge design and optional swivel for
    enhanced vertical clearances
  • ‘Easy-nose’ wind-down pistons
  • Safe, ergonomic handle
  • Available with various NRS options (standard, gear, or round nut)
  • Nitride anti-wear and anti-corrosion
  • Dual max stroke indication
  • Test bolt FAT and CE marked
Document
To Size Number
Bolt diameter
Hydraulic Pressure Area (HPA)
Max load
Tool Outer Diameter
Tool Height. Ex fittings
Total Tool Weight
mm Inch mm2 kN klbf mm in mm in kg lbs
ACU-DF 1 M20 3/4 663 150 33.7 52 2.0 91 3.6 1 2.2
ACU-DF 2 M22 7/8 1116 254 57.1 62 2.4 91 3.6 1.6 3.5
ACU-DF 3 M24 1 1295 295 66.2 66 2.6 95 3.7 2 4.4
ACU-DF 4 M27 1702 387 87 74 2.9 98 3.9 2.7 6
ACU-DF 5 M30 1 1/8 2074 472 106.0 80 3.1 101 4 3 6.6
ACU-DF 6 M33 1 1/4 2565 584 131.2 89 3.5 106 4.2 3.7 8.2
ACU-DF 7 M36 1 3/8 3013 685 154.1 99 3.9 114 4.4 4.8 10.6
ACU-DF 8 M39 1 1/2 3595 818 183.9 110 4.3 114 4.5 5.7 12.6
ACU-DF 9 M42 1 5/8 4142 942 211.8 116 4.6 117 4.6 7.5 16.5
ACU-DF 10 M45 1 3/4 4814 1095 246.2 128 5.0 121 4.8 10 22
ACU-DF 11 M48 1 7/8 5432 1236 277.8 133 5.2 131 5.2 11.5 25.4
ACU-DF 12 M52 2 6484 1475 331.6 145 5.7 134 5.3 13.5 29.8
ACU-DF 13 M56 7497 1706 383.4 155 6.1 148 5.8 15 33.1
ACU-DF 14 M60 2 1/4 8714 1983 445.7 165 6.5 158 6.2 17 37.5
ACU-DF 15 M64 2 1/2 9883 2248 505.5 178 7 173 6.8 23 50.7
ACU-DF 16 M68 2 3/4 11268 2563 576.3 188 7.4 177 7 27 59.5
ACU-DF 17 M72 12769 2905 653.1 198 7.8 186 7.3 32.5 71.6
ACU-DF 18 M76 3 14344 3263 733.6 210 8.3 190 7.5 37 81.6
ACU-DF 19 M80 16032 3647 819.9 220 8.7 195 7.7 43 94.8
ACU-DF 20 M85 3 1/4 18158 4149 932.7 230 9.1 210 8.3 46 101.4
ACU-DF 21 M90 3 1/2 20433 4689 1054.2 245 9.6 220 8.7 50 110.2
ACU-DF 22 M95 3 3/4 22824 5261 1182.7 255 10 230 9.1 62 136.7
ACU-DF 23 M100 4 25358 5870 1319.6 268 10.6 275 10.8 73 160.9

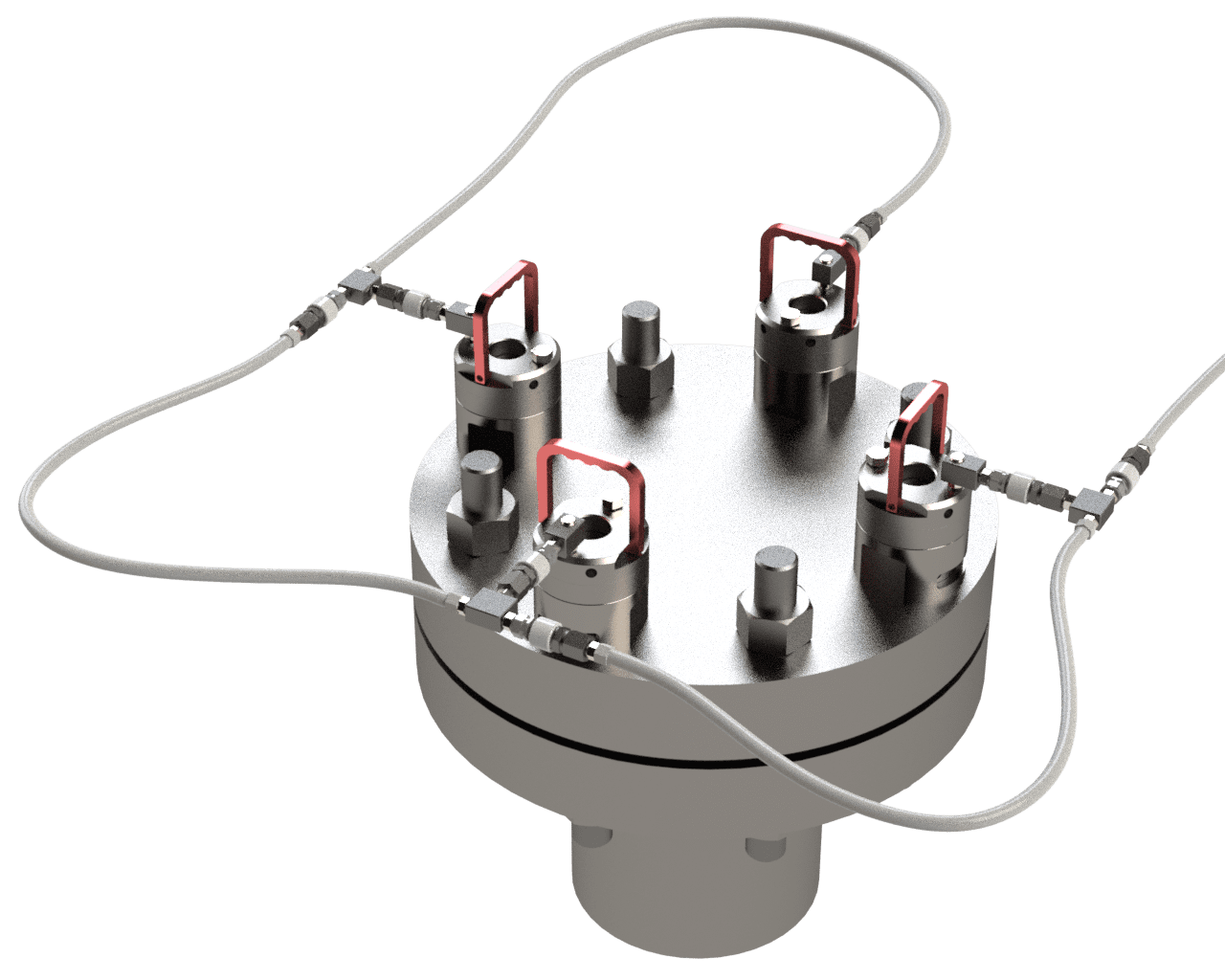

ACU Flange Handle - Acutension

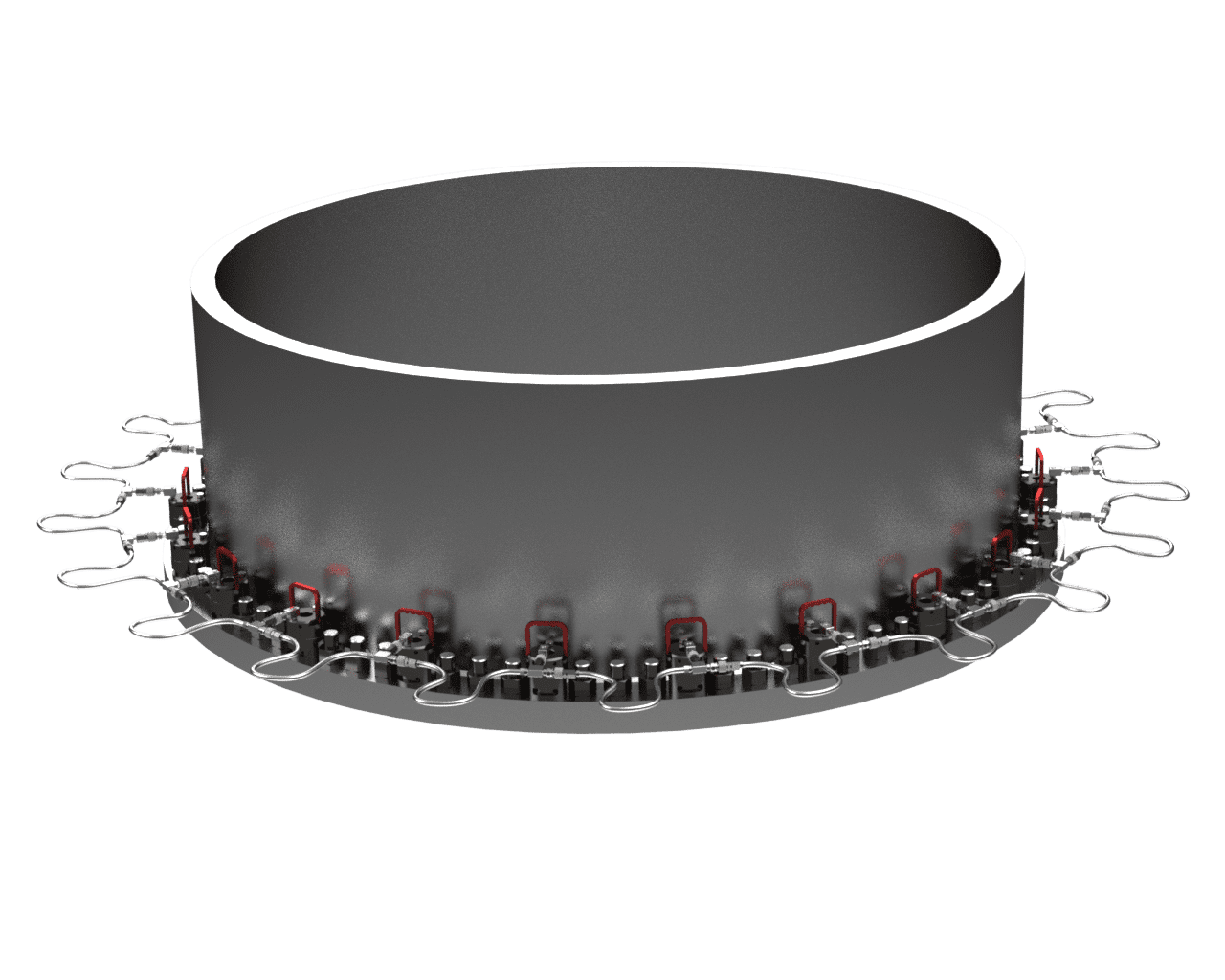

ACU-DF - Flange Handle

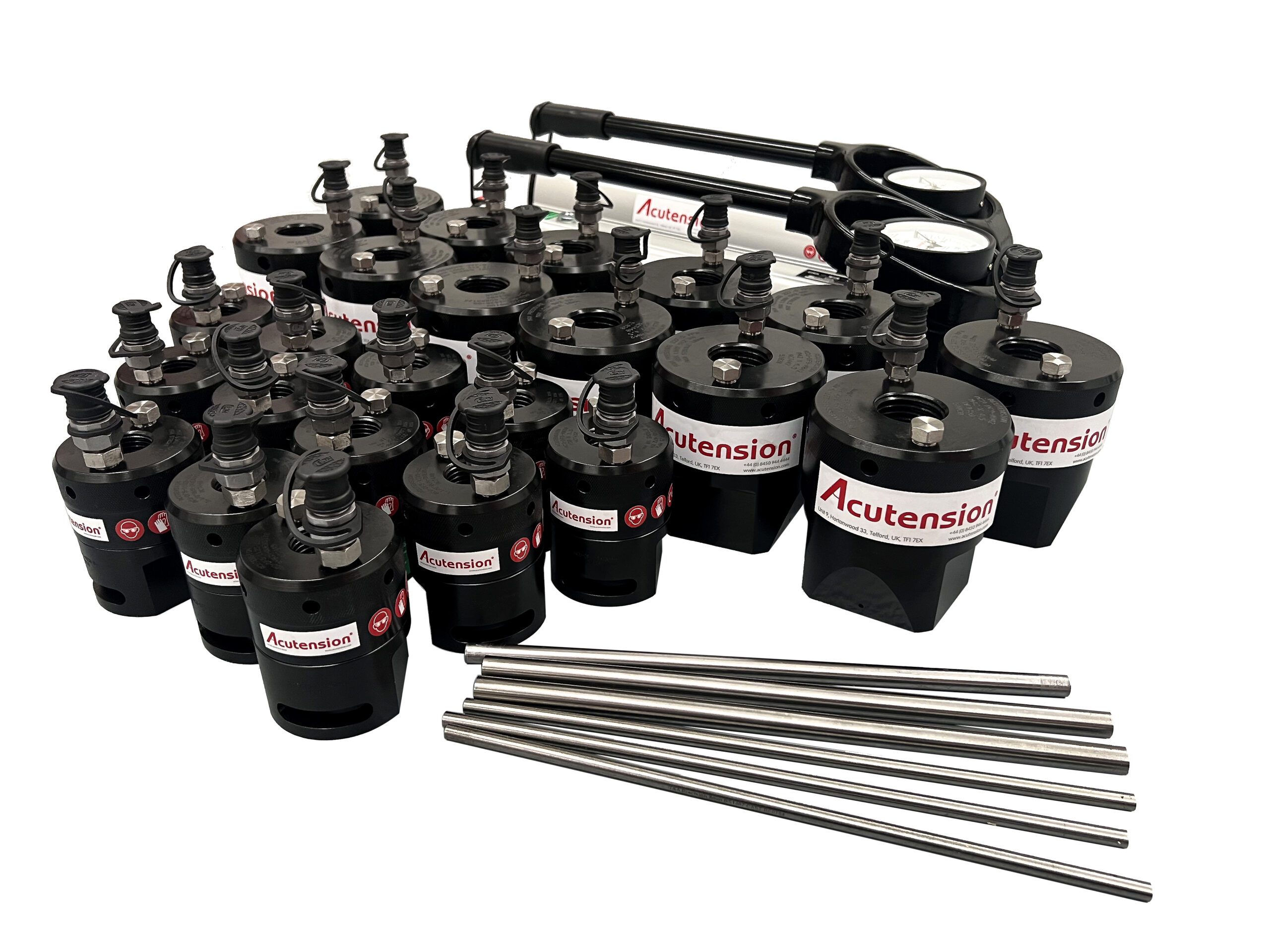

Acu-DF - Acutension

Available from stock for the most common sizes, ACUTENSION™ can design and manufacture specialised tooling in unparalleled lead-times wherever required, from M20 (3/4in) to unlimited bolt diameter. Please contact us to discuss your bolting requirements.

ACU-DF™ – the most versatile range of hydraulic range of tensioners available.
