ACUTENSION™flexible hydraulic hose
assemblies – Faster, safer flow

ACUTENSION™ provides a vast array of hydraulic hose assemblies – ranging from 70 MPa to >300 MPa – from stock. Our hoses offer a broad range of hydraulic fitting configurations and hose lengths, to support any tooling installation arrangement.

ACUTENSION™ hydraulic hoses are manufactured using a high strength, spiralised steel-reinforced polymer, engineered specifically for ultra-high working pressure; all the while maintaining flexibility and ease of use. All hoses are additionally protected with a clear PVC cover for resistance against abrasion, corrosion and to provide additional operator protection.

All of our hoses are suitable for use in conjunction with ACUTENSION™ tensioning product and pumps.

For added simplicity, ACUTENSION™ flexible hydraulic hoses are colour-coordinated to ensure correct pressure-rating compatibility:

BLACK – 100 MPa maximum working pressure
BLUE – 150 MPa maximum working pressure
RED – 250 MPa maximum working pressure

ACUTENSION™ ensure standards are met:

Safety tested – All hoses are pressure tested prior dispatch, and supplied complete with a pressure test certificate.

Traceability – All hoses are assigned serial numbering and QR-code* for tracking and traceability.

Compliance – All hoses are CE marked and include a standard warranty.

Designed to work with a variety of hydraulic media (including synthetic/bio hydraulic oils and potable water), hose assemblies from ACUTENSION™ are also supplied complete with CEJN quick connect male and female hydraulic couplers, to ensure a fast, non-drip, safety locking connection, regardless of hydraulic media pressure.

Hose Specifications - Acutension®
Acutension® - Blue Hose Pipe
Acutension® - Red Interconnect Pipe
Hose Specifications - Acutension®
Acutension® - Blue Hose Pipe
Acutension® - Red Interconnect Pipe

Link Hoses

Link hoses comprise a simple, single-line feed, featuring a hydraulic quick connection at each end of the hose. Most commonly specified in M-F, ACUTENSION™ can also supply in F-F, M-M or even direct-engage (no connector) variants.

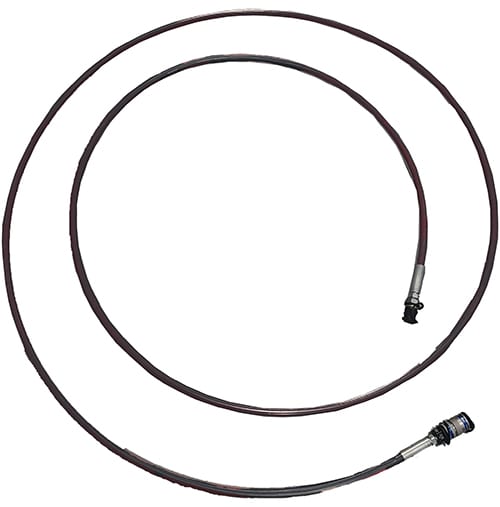

Acutension® - Black Hose Pipe
Acutension® - Red Hose Pipe
Link Hose Specifications - Acutension®

Alternative hydraulic connections, pressures and lengths also available; please contact ACUTENSION™ for further information.

Interconnect Hoses

Interconnect hose assemblies comprise a link hose, but with an integral 3-way junction block at the tensioner end of the hose. These hoses are designed to interconnect several tensioners from the same hydraulic feed.

Acutension® - Black Interconnect Pipe

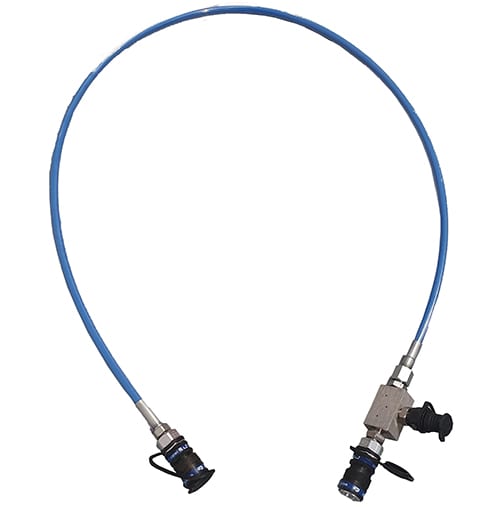

Acutension® - Blue Interconnect Pipe
Interconnect Hose Specifications - Acutension®

If your preferred configuration is not listed above, ACUTENSION™ can provide any combination of required connection layout. Please contact us for further information.
